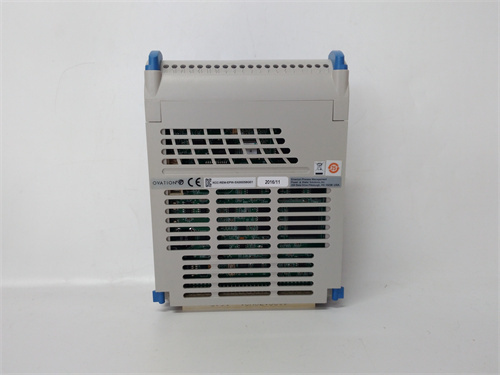

WESTINGHOUSE 1C31116G04 | Ovation Analog Input Module 8-Channel

Description Key Technical Specifications Parameter Specification Part Number 1C31116G04 Product Type Analog Input Module Series Ovation DCS Channels 8 differential inputs Input Type 4-20 mA (standard), 0-20 mA configurable Resolution 16-bit A/D conversion Accuracy ±0.1% of span typical Update Rate 100 ms per channel (configurable) Field Power External 24V DC required (module does not provide loop power) Isolation 500V channel-to-channel, channel-to-backplane Hot Swap Supported (with termination assembly) Indicators Module status, channel status LEDs Power Consumption 3W typical from Ovation backplane Mounting Ovation I/O rack Operating Temp 0°C to 60°C Condition New Surplus (Original Packaging) Product Introduction The WESTINGHOUSE 1C31116G04 is an 8-channel analog input module for the Ovation distributed control system. It interfaces with standard 4-20 mA field transmitters measuring pressure, flow, temperature, level, and other process variables, converting analog signals to digital values for control and monitoring in power generation and industrial applications. The 1C31116G04 features 16-bit resolution and per-channel configurability for range, filtering, and alarm limits. Unlike loop-powered versions, this module requires external 24V DC field power—giving users flexibility to use existing power distribution or third-party transmitters. This unit is new surplus, factory-sealed in original Westinghouse/Emerson packaging. Ovation components remain critical for power plant maintenance; contact us for current stock and firm pricing. Frequently Asked Questions (FAQ) Q: What’s the difference between 1C31116G04 and 1C31116G01? A: The suffix (G04 vs G01) typically indicates a hardware revision or variant with: Updated component sourcing Enhanced EMC protection Different firmware revision Possibly improved diagnostics The WESTINGHOUSE 1C31116G04 is a later revision than G01. In most cases, G04 is backward compatible with G01 and can replace it without configuration changes. However, always verify with your system documentation. In Ovation systems, later revisions generally work, but check the I/O module compatibility list. If you have a very old system, stick with the same revision or consult Emerson. Q: Does the 1C31116G04 provide 24V loop power to field transmitters? A: No. The 1C31116G04 requires external loop power. This is a key distinction from some other Ovation analog input modules (like the 1C31116G05 or loop-powered variants). With the 1C31116G04, you must supply 24V DC from an external source—either a distributed field power supply or individual transmitter power feeds. If your existing system uses a loop-powered module, swapping to 1C31116G04 means adding external power or rewiring. Always verify your current module type before ordering. Q: What termination assembly works with the 1C31116G04? A: The WESTINGHOUSE 1C31116G04 requires a mating termination assembly (TA) for field wiring. Common options include: 1C31125G01 (standard 8-channel TA with screw terminals) 1C31125G02 (8-channel TA with compression terminals) Other variants depending on wire size and termination type The TA mounts on DIN rail, and the 1C31116G04 plugs into it from the front. You never wire directly to the module. If you’re replacing an existing module, the TA stays in place—just swap the electronics. Always verify your TA model matches the wiring configuration. Q: What do the front panel LEDs indicate on the 1C31116G04? A: The 1C31116G04 has per-channel status LEDs: Green: Channel active, signal within configured range Yellow: Channel in alarm (high/low limit exceeded) Red: Channel fault (open wire, underrange/overrange, hardware error) Off: Channel disabled or not configured During commissioning, you’ll see LEDs cycle. Steady green means happy channel. If you see red, check field wiring first—80% of “bad module” complaints trace to open loops or dead transmitters. The 1C31116G04 is usually innocent. Q: Can the 1C31116G04 read 0-10V DC signals directly? A: No, not directly. The WESTINGHOUSE 1C31116G04 is designed for current inputs (4-20 mA). However, you can convert voltage to current using an external precision resistor (typically 250 or 500 ohms) across the input terminals. This creates a current proportional to voltage (I = V/R). But: Accuracy depends on resistor tolerance (use 0.1% or better) You lose the open-wire detection feature May reduce overall accuracy For occasional use, it works. For permanent voltage signals, buy the correct voltage input module. The 1C31116G04 is happier with current. Q: What’s the maximum cable distance from module to field transmitters? A: Standard practice: keep runs under 2000 feet (600 meters) with twisted, shielded pair. The 1C31116G04 doesn’t provide loop power, so voltage drop isn’t its problem—that’s on your external power supply. However, signal integrity degrades with distance due to capacitance and noise pickup. For long runs: Use 18 AWG or larger Properly terminate shield (one end only) Avoid running parallel to high-voltage power cables In one refinery, we pushed 3000 feet with 16 AWG and good grounding—worked fine. Beyond that, consider remote I/O or signal conditioners. The 1C31116G04 is sensitive, not magical. Physics applies. Q: Is the 1C31116G04 hot-swappable in a live Ovation rack? A: Yes, with the termination assembly in place. The WESTINGHOUSE 1C31116G04 supports hot-swapping—you can pull the electronics module while the TA remains wired and powered. However: All 8 channels go offline during the swap (no process data) The controller sees module fault and may take configured fail-safe actions For critical loops, place in manual or bypass before swapping I’ve swapped 1C31116G04 modules live in power plants, but always with operator approval and loops in manual. The hardware handles it fine; the process doesn’t like losing data. Hot-swap capability is for convenience, not for routine maintenance on live critical loops. Q: What’s the typical failure mode for these modules in power plants? A: In my experience with Ovation systems: Input surge damage from lightning or welding (most common) Power supply section aging—after 10 years in hot cabinets Connector corrosion in coal plants (sulfur environment) Channel-specific failure (one channel dies, others work) The WESTINGHOUSE 1C31116G04 is robust, but power plants are brutal. If you lose one channel while others work, the module is damaged—replace it. For critical plant systems (boiler controls, turbine monitoring), keep spares. When a module fails during an outage, you can’t wait for overnight shipping. Q: Does this module require configuration in the Ovation software? A: Yes. The 1C31116G04 must be configured in the Ovation engineering tool: Assign module to I/O slot Set input range (4-20 mA, 0-20 mA) Configure engineering units (PSI, °C, GPM, etc.) Set alarm limits (high, high-high, low, low-low) Apply filtering (time constants) Map points to controller database If you’re replacing a failed module with an identical 1C31116G04, the configuration is already in the controller—just plug it in. For new installations, expect engineering time to configure. Q: What’s the difference between 1C31116G04 and 1C31116G05? A: The 1C31116G04 is the standard analog input module requiring external loop power. The 1C31116G05 (or similar) typically provides loop power for two-wire transmitters. Key differences: G04: External power required, lower cost, flexible for existing power distribution G05: Built-in loop power, simpler wiring for two-wire transmitters, higher cost Choose based on your plant’s wiring philosophy. If you have distributed 24V supplies, G04 is fine. If you want per-loop power from the module, choose the loop-powered variant. Check your existing module before ordering. Q: Can the 1C31116G04 be used with HART transmitters? A: Yes, for analog value only. The WESTINGHOUSE 1C31116G04 reads the 4-20 mA signal from a HART transmitter but does NOT extract or pass through the HART digital data. If you need HART communication for smart device diagnostics and configuration, you need a HART-enabled analog input module (different part number). The 1C31116G04 gives you the analog value only. For most control loops, that’s sufficient. For asset management, you need HART capability. MITSUBISHI-MR-SA152 plc HE693RTD600R PLC 6DD1600-0AK0 PLC 6DD1606-3AC0 PLC CML40-2-SP-330-NA-NNNN-NW PLC SPAD-346C3 PLC 6AV3688-3AA03-0AX0 PLC Email: [email protected] Phone: 86 15340683922 Sales:Wu Jiedong Our products are guaranteed for 1 year, with new and original production stopped and imported spare parts. All prices listed on the official website are subject to confirmation by contact: Wu Jiedong (manager). Our product: brand new original packaging Our warranty: All new or repaired parts have a 12 month warranty period beginning Our payment: 100% telegraphic transfer of inventory items before shipment, conditions can be proposed! If you have any downtime spare parts that you cannot find, please feel free to call or use email to contact me. If there are issues that the product cannot solve, please contact me. Product prices can be negotiated. Please do not consider contacting me!
