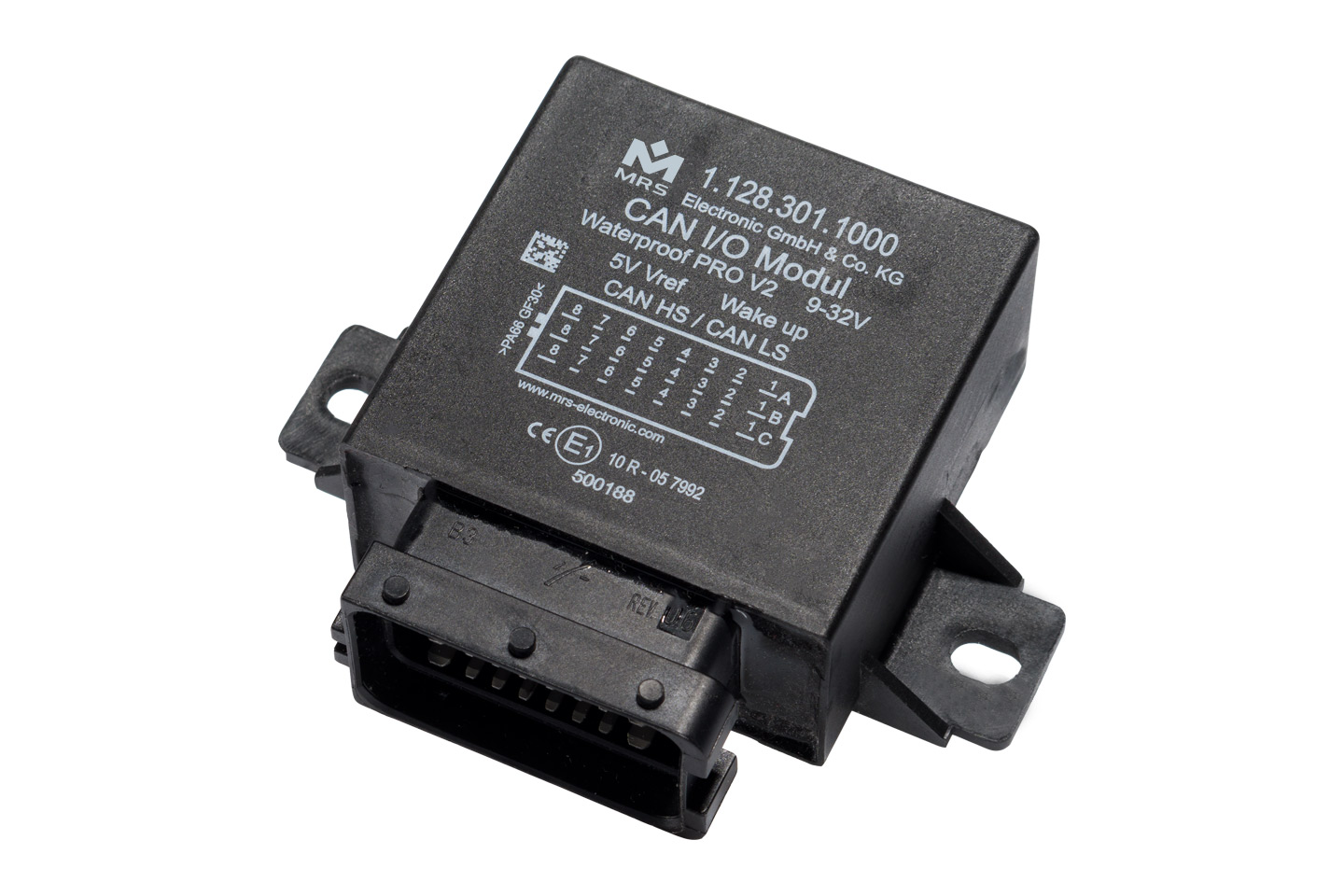

CAN I/O PLC WP PRO V2

The waterproof CAN I/O PLC WP PRO V2 with 16 I/Os convinces by the various application possibilities in numerous control applications. In addition to eight I/Os that can be configured as inputs or outputs, it offers six analog and two digital inputs. The CAN controller also has integrated protection diodes to limit the free-wheeling voltage generated by the inductive loads. The module can be used to control four current-controlled proportional valves. The 5 Volt reference output allows additional sensors to be supplied with voltage. The own supply voltage can be measured internally via terminal 30.
