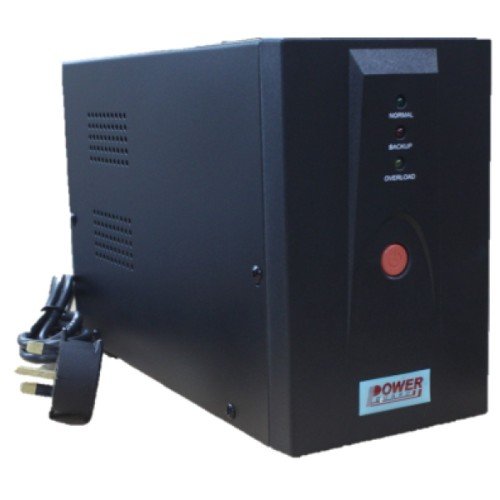

Description Brand POWER GUARD Model PG 650 VA – P S Power (VA/W) Requirements 650 VA / 390W Input Voltage Range 145-280VAC Frequency 50/60Hz /-5% Output Voltage (Inverter Mode) 220/230VAC /-10% Capacity 390W Frequency (Inverter Mode) 50/60Hz /-5% Transfer Time 2~6ms typical Waveform Modified-Sinewave Protection Spike & Surge Suppression Yes Over/Under Volt. Switch to Bat. O / P when main over regulation range Over load /short Circuit Fuse & current linited for both Mains and Battery modes Function Cool start Cool start computer even there is no main power Automatic recharge Automatic recharge even UPS is off Body Type Metal INDICATORS AC Mode Green lighting Battery Mode Red lighting Over Load Yellow lighting Battery Type Lead-Acid Miantenance-Free DC Bus 12V 8.2Ah Number 1 PCS Recharge time 6 hours up to 90% capacity Back up time 05-20 mins (Depending on load) Environmental Temperature -5-45 DegreeC Humidity 20% to 90% Warranty 01 Year Battery & 02 Years Service with Spare Parts *Back-up-Time : UPS will support one set PC. PC power conjumption unit based on 130VA
